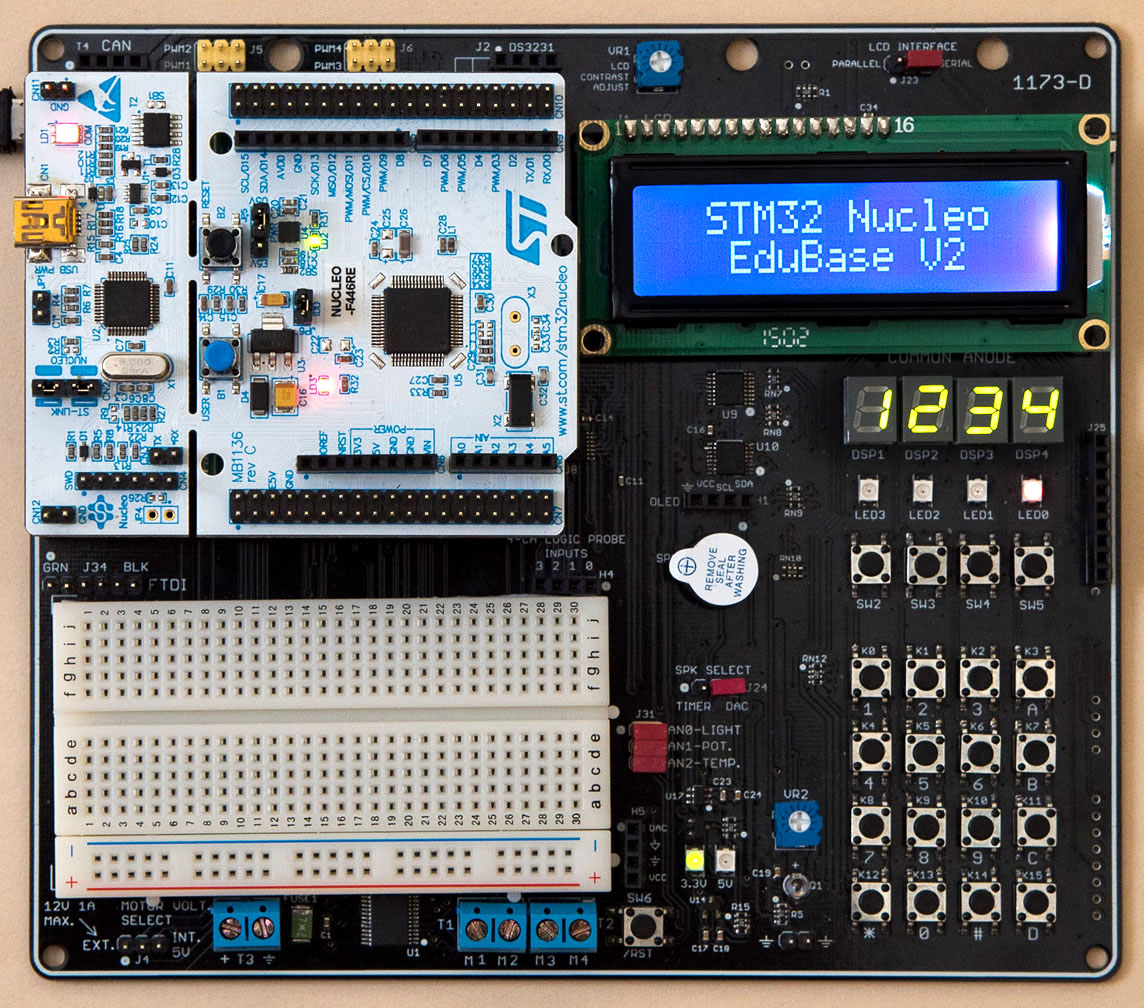

EduBase-V2-F446 trainer for F446RE and F031K6

The EduBase-V2 is replaced by the EduBase-V2-F446.
The EduBaseV2--F446 is the EduBase-V2 with additional STM32F446 and STM32F031K6 support without adapters.
It still supports Tiva and MSP432 launchpads, just like the EduBase-V2.
For any other ARM microcontroller modules, a custom made adapter is needed.

From the EduBase-V2, we added headers for Nucleo-F446RE and Nucleo-F031K6, removed the Arduino-Nano header.
The new boards is a 3V system only for ARM controllers.

The board can be shared by many ARM modules for multiple EE/ECE courses. It reduces the cost per course.


Nucleo F446RE Features:.

  • ARM® 32-bit Cortex®-M4 CPU with FPU, 180 MHz, MPU.
  • Memories
    • 512 kB of Flash memory
    • 128 KB of SRAM
  • LCD parallel interface, 8080/6800 modes
  • Clock, reset and supply management
    • 1.7 V to 3.6 V application supply and I/Os
    • POR, PDR, PVD and BOR
    • 4-to-26 MHz crystal oscillator
    • Internal 16 MHz factory-trimmed RC (1% accuracy)
    • 32 kHz oscillator for RTC with calibration
    • Internal 32 kHz RC with calibration
  • Low power
    • Sleep, Stop and Standby modes
  • 3×12-bit ADC
  • 2×12-bit D/A converters
  • Up to 17 timers: 2x watchdog, 1x SysTick timer and up to twelve 16-bit and two 32-bit timers up to 180 MHz, each with up to 4 IC/OC/PWM or pulse counter
  • Debug mode with SWD interface
  • Up to 4 × I2C interfaces (SMBus/PMBus)
  • Up to 4 USARTs/2 UARTs (11.25 Mbit/s, ISO7816 interface, LIN, IrDA, modem control)
  • Up to 4 SPIs (45 Mbits/s), 3 with muxed I2S for audio class accuracy via internal audio PLL or external clock
  • 2 x SAI (serial audio interface)
  • 2 × CAN (2.0B Active)
  • SDIO interface

MSRP:  $168,  Educational price:  $148
The Nucleo F446RE module is not included in the price.



Textbooks for Nucleo F446RE:

With low cost, high quality textbooks and many fully debugged sample programs available on Professor Mazidi's web site, teaching an ARM course can never be any easier.



Textbook for Nucleo F446RE
written by Prof. Mazidi and Prof. Chen









For an EE / ECE course, the Keil IDE and debugger is a very popular choice in universities.  Professor Mazidi and Professor Chen have chosen the Keil IDE and wrote above textbooks. Professor Mazidi is a highly regarded author of many textbooks for embedded systems, and Professor Chen is an ARM controller software expert who wrote and tested all sample programs for the EduBase-V2 and EduBase-F446.  We are very grateful to their help.

To buy the textbook and know how to create a C project in Keil, please visit Prof. Mazidi’s web site:
ARM/STM_ARM_books.html

Sample programs for the STM32F446 running on EduBase-V2 can be downloaded from Prof. Mazidi's web site:
ARM/STM32_EDUBASE.html



DM00105823 (UM1724):  Nucleo-64 ARM development board user Manual

DM00141306:  STM32 F446 datasheet

DM00135183 (RM0390):  STM32F446 reference manual



If you have any technical questions regarding the NucLeo-F446RE development board,
you can post a message at the STmicroelectronics forum.
Many experienced users are active on the forum to answer your questions.
If you have any question regarding the EduBase-V2 hardware and need a tech support
please email your question to
trainer4ee@gmail.com
