NanoboyC6



  Top side

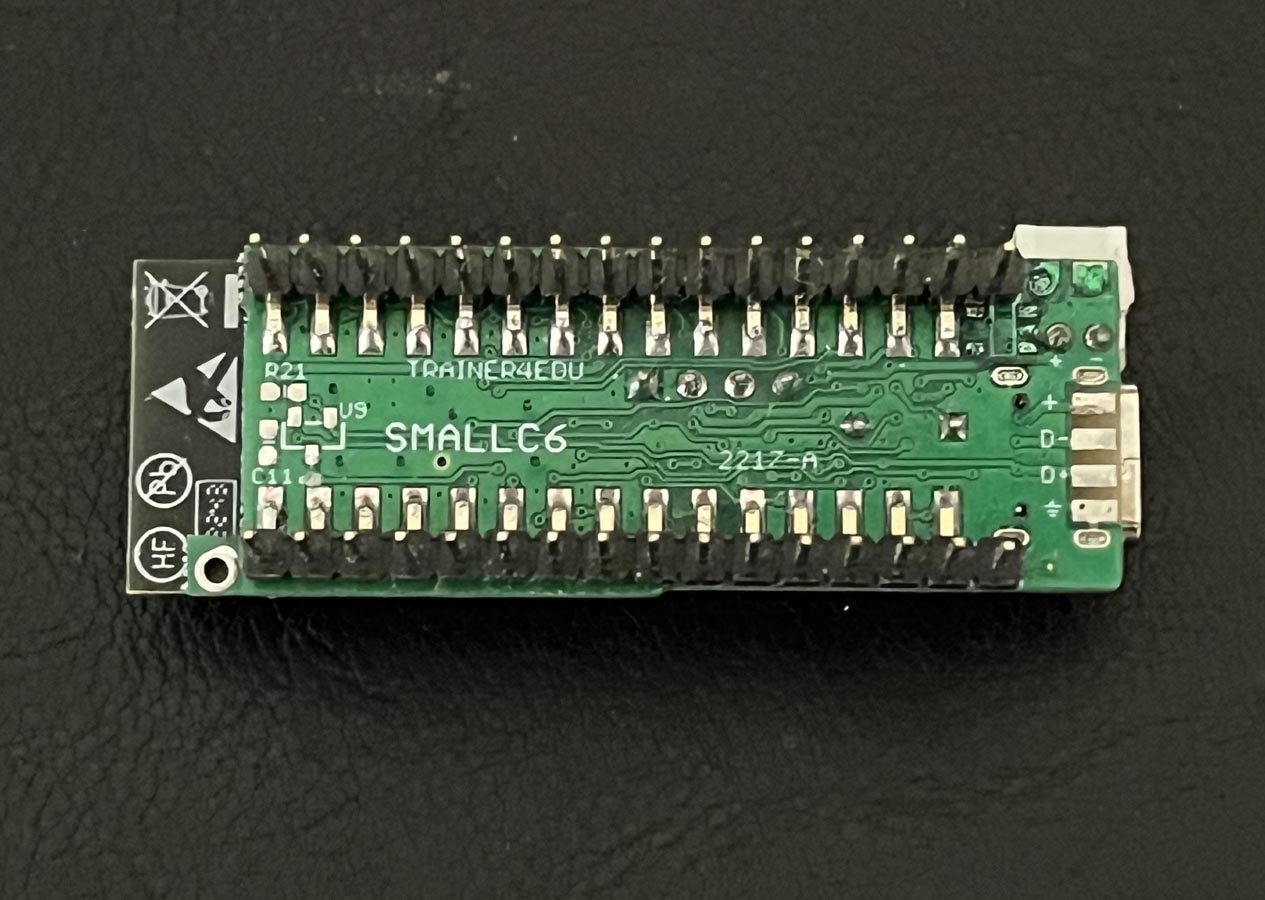

Bottom side











NanoboyC6 features:

1. FCC certified ESP32-C6 WROOM-1 module with the new ESP32-C6 chip.

2. 32-bit 160 MHz Single Core RISC-V controller, 8 MB flash.

3. 2.4 GHz Wi-Fi 6 & Bluetooth 5 (LE) & IEEE 802.15.4 (Zibee 3.0).

4. 3.3V, 700mA LDO.

5. The reversing current blocking diode D2 (BAT20J) is rated at 1A with low leakage current.

6. Pin-out is identical to the Espressif's ESP32-C6-DevKitS-1-N8, but 0.2" narrower.

7. Standard WS2812B RGB. The RGB can be turned off when it's not in use. It will extend battery life.

8. Light sensor. It can be turned off when it's not in use. It will extend battery life.

9. 5V power LED indicator and 5V presence detection.

10. User LED and user pushbutton switch.

11. Active buzzer for an audible indicator.

12. 0.96" 128x64 OLED display.

13. PCB ANT or U.FL ANT for Wi-Fi communication.

14. Larger RESET pushbutton does not hurt your finger.

15. On board QWIIC connector with power on/off control for external sensors.

16. Includes a set of male and female headers and a 2-pin JST LiPo battery connector.

17. Size: 2.06" X 0.77" or 52.33mm X 19.56mm.

18. Pin spacing: X--0.1", Y--0.6".



Unique features on the new NanoboyC6 board

1. A digital switch is added to turn off the battery level test circuit after the test is done. It will reduce deep sleep current significantly.

2. With a Low Pass Filter, the battery charge status LED does not flicker when a battery is not connected.

3. Long Reset Press (LRP) to enter bootloader mode, it's simple and easy, press the reset button until a red LED is lit
to enter bootloader mode. No need to press 2 buttons at the same time. Once you use it, you may like it.

4. With an ON/OFF power switch, the battery does not need to be unplugged. At the end of day, you can just turn off this switch and do not need to unplug the JST battery connector and the USB cable. The power LED will still be on as long as the USB cable is plugged in, but it will only draw a very insignificant amount of current from the USB hub. No current will be flown out from the battery.

5. Maybe able to plays the flappy bird game and other simple video games as well by adding an active buzzer and a 0.96" OLED.
It's not available now, but very possible when the C6 is supported by Arduino IDE. The flappy bird game works well on our other ESP32 boards,

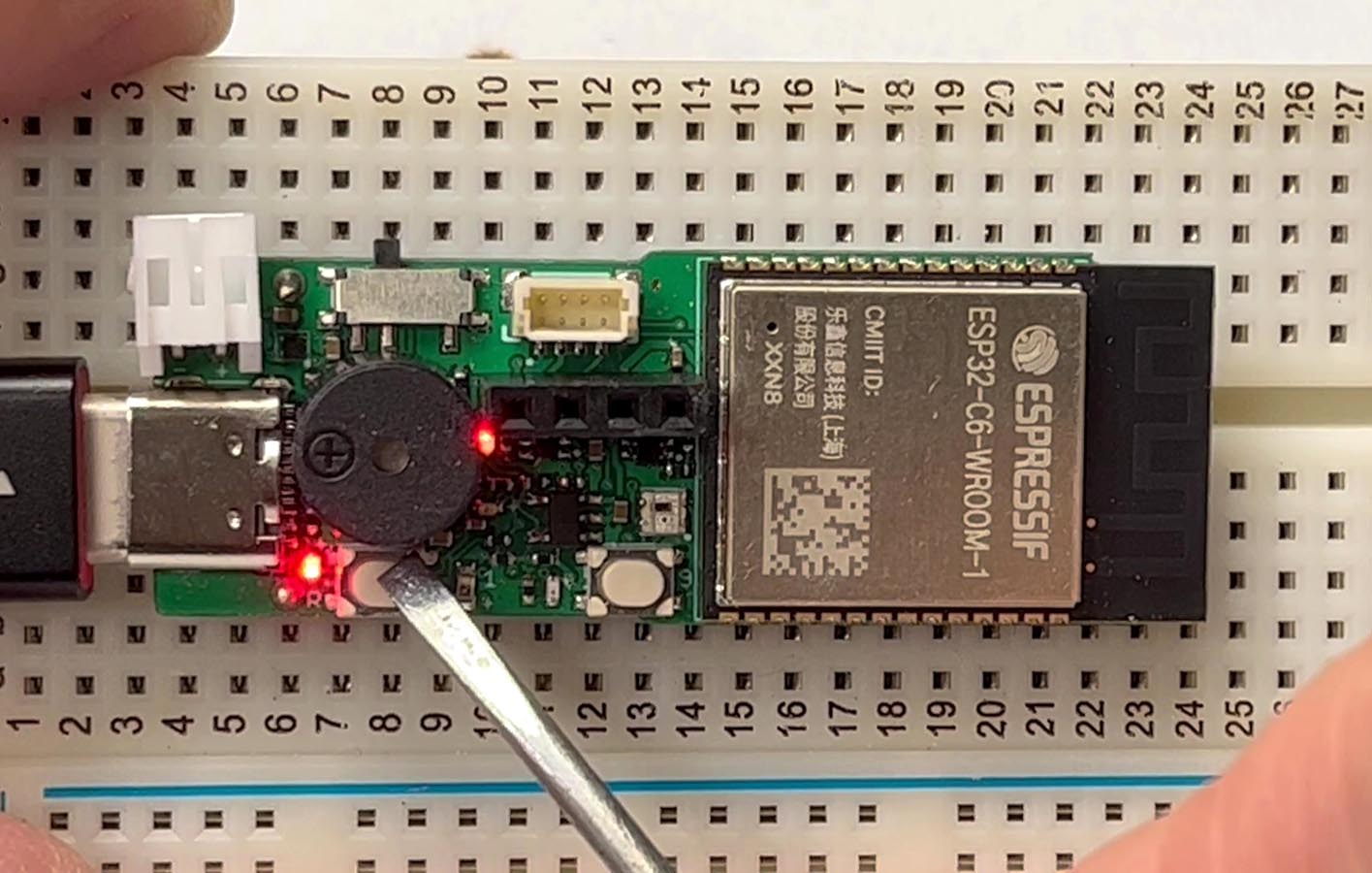

Long Reset Press to enter bootloader mode

Adj. PC speaker vol. to max. to hear tones









NanoboyC6 assembling Instructions and sample programs will be available very soon.
