Mini
T3.2 - Miniaturization of Teensy 3.2 board
|

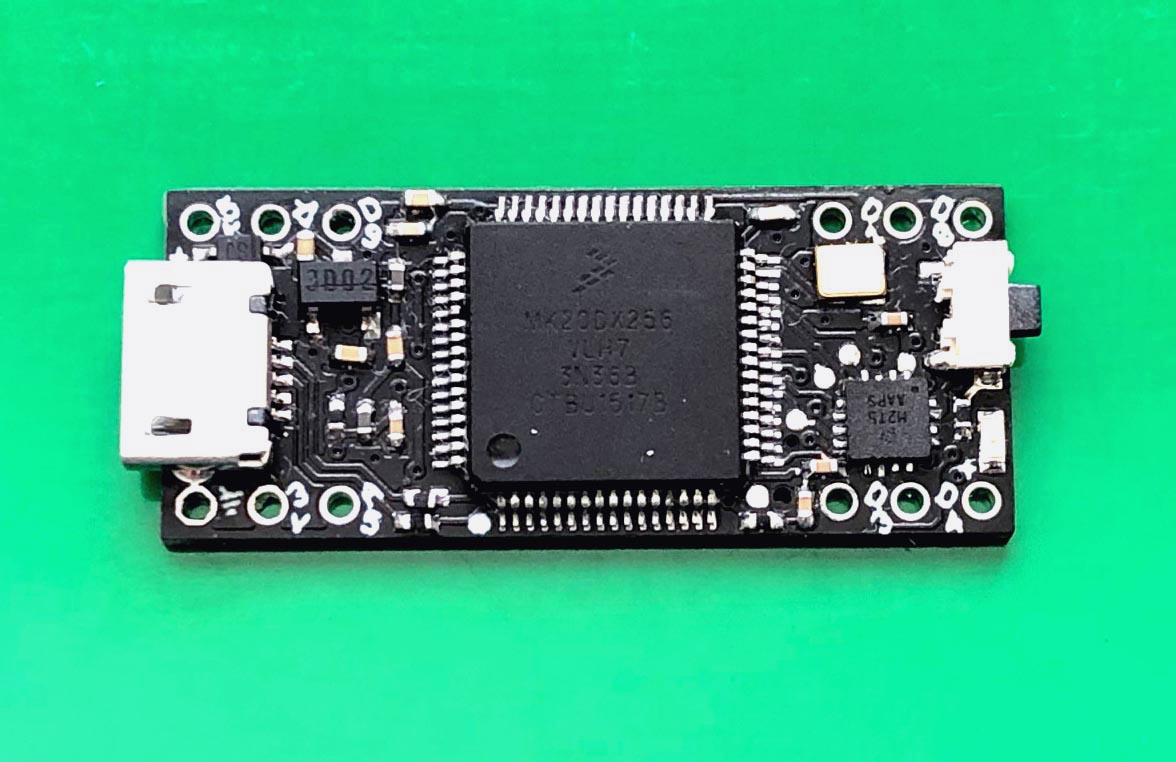

Top Side |

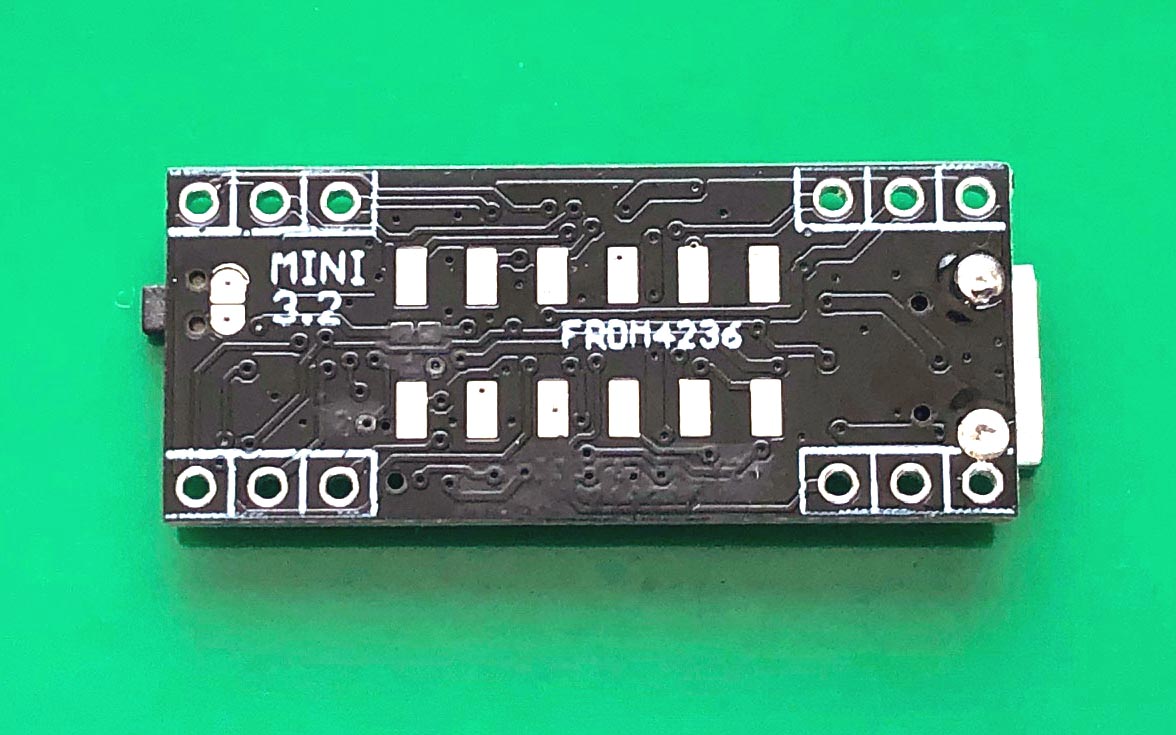

Bottom Side |

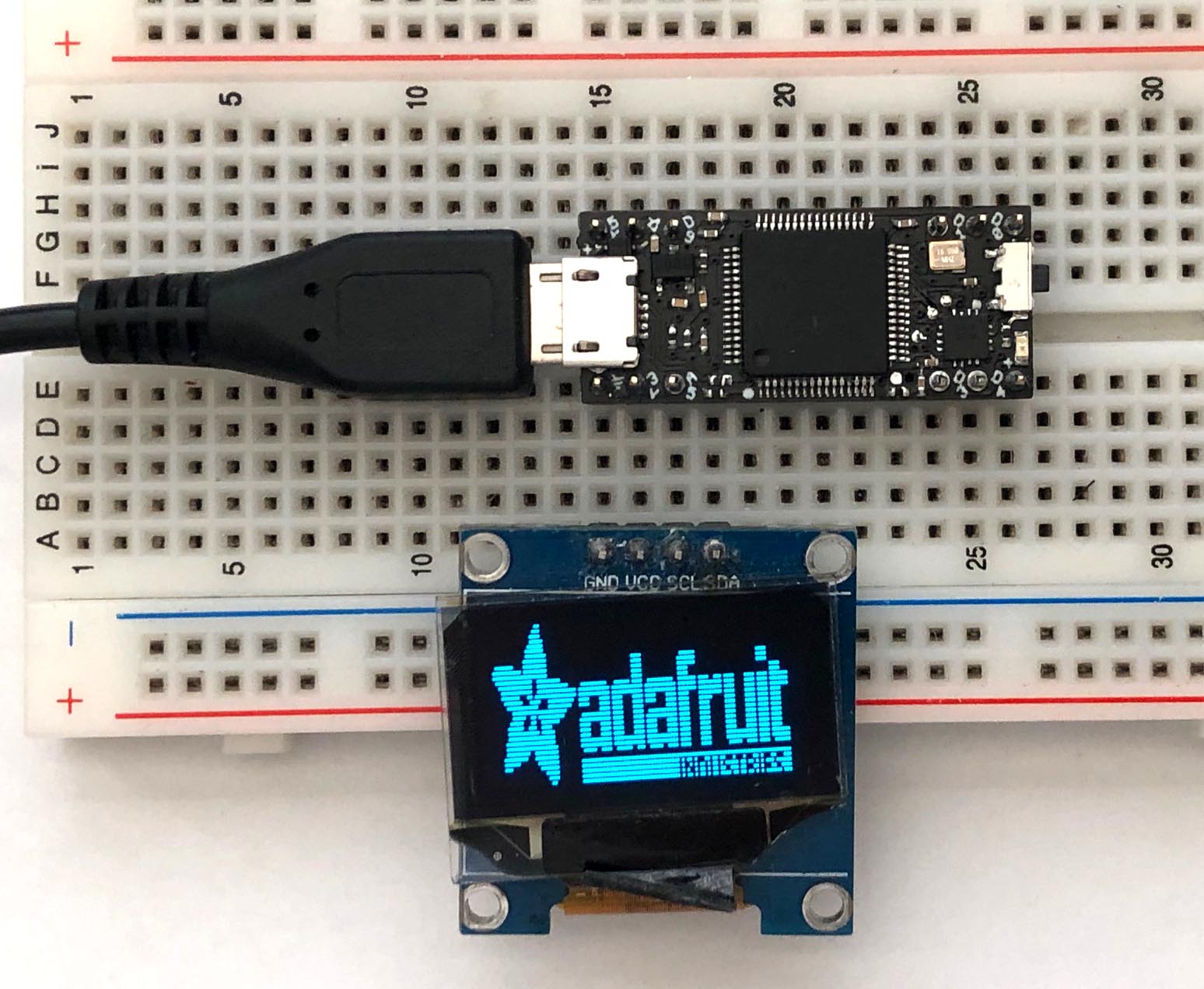

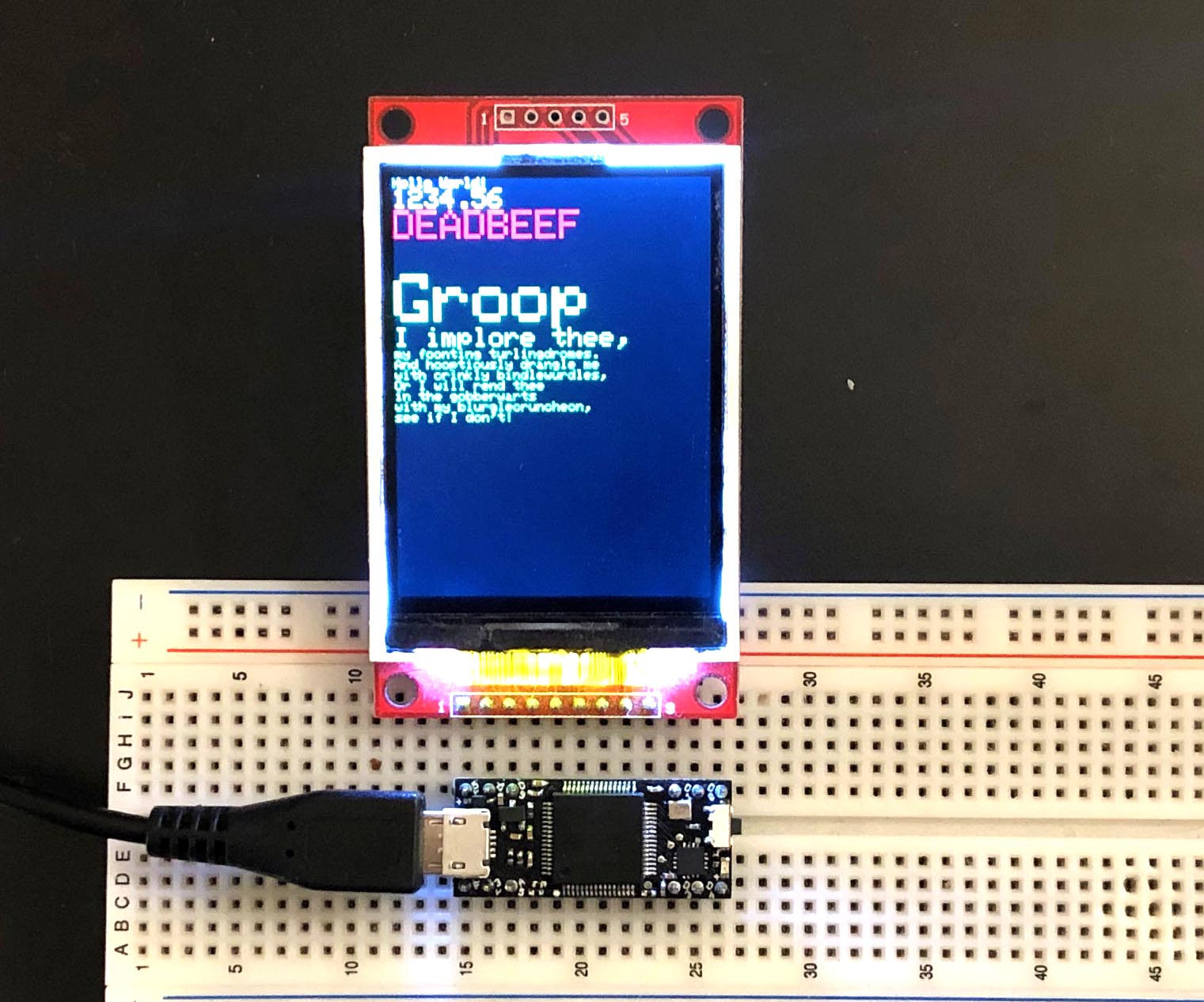

Mini T3.2 features: 1. Small size, 1.2" x 0.511" (30.48mm x 12.98mm), 2x12 DIP form factor for applications that a smaller size is needed. 2. Based on the MK20DX256VLH7, same as the Teensy 3.2. 3. Runs Teensyduino. 4. Breadboard friendly. 5. Pinouts are designed for TFT and OLED displays, no wiring is needed on a breadboard, leave more space for your circuits.
Mini T3.2 soldering Instructions for SMD parts
|
